Connection Diagram

Product Family

AVN257

1/3" HR image sensor

Lens : f3.8mm / F1.5

• Viewing Angle : 80.4° (Diagonal) / 63.1° (Horizontal) / 50.2° (Vertical)
• Reso : VGA
• ONVIF Compatible : (Profile S)
• POE : NO
• External Alarm Device Connection : NO
• Note :

AVN284A

1/4" Sony Color Super HAD CCD

Lens: f3.9 ~ 85.9mm

• 4º~ 60º
• Reso : High Resolution
• ONVIF Compatible : (Profile S)
• POE : NO
• External Alarm Device Connection : NO

AVN244A

1/4" Sony Color Super HAD CCD

Lens: f3.9 ~ 85.9mm

• 4º~ 60º
• Reso : D1 CIF
• ONVIF Compatible : (Profile S)
• POE : NO
• External Alarm Device Connection : NO

AVO403

1/4" SONY H.R. image sensor

Lens: f3.8mm / F1.5

• 62.7° (Diagonal) / 53.7° (Horizontal) / 34.1° (Vertical)
• Reso : SXGA, 720P, VGA, QVGA
• ONVIF Compatible : (Profile S)
• POE : (IEEE 802.3af)
• External Alarm Device Connection : NO
• Note: Human detection sensor built-in Audio

AVN363V

1/3” MOS-Type Image Sensor

Lens: f4.0mm ~ f9.0mm

• 75°~36°
• Reso : SXGA, SXVGA, 720P, VGA,QVGA
• ONVIF Compatible : YES
• POE : NO
• External Alarm Device Connection : NO

AVN362V

1/3” MOS-Type Image Sensor

Lens: f6.0mm / F1.8

• 62°
• Reso : SXGA, SXVGA, 720P, VGA, QVGA
• ONVIF Compatible : YES
• POE : NO
• External Alarm Device Connection : NO

AVN216

1/3" HR image sensor

Lens: f3.8mm / F1.5

• 80.4° (Diagonal) / 63.1° (Horizontal) / 50.2° (Vertical)
• Reso : D1, CIF
• ONVIF Compatible : (Profile S)
• POE : NO
• External Alarm Device Connection : NO
• Note: Audio

AVO401

1/4" SONY CMOS image sensor

Lens: f3.8mm / F1.5

• 62.7° (Diagonal) / 53.7° (Horizontal) / 34.1° (Vertical)
• Reso : SXGA, 720P, VGA, QVGA
• ONVIF Compatible : (Profile S)
• POE : NO
• External Alarm Device Connection : YES
• Note:

AVO402

1/3" HR image sensor

Lens: f3.8mm / F1.5

• 80.4° (Diagonal) / 63.1° (Horizontal) / 50.2° (Vertical)
• Reso : D1, CIF
• ONVIF Compatible : (Profile S)
• POE : NO
• External Alarm Device Connection : YES
• Note: Audio

Success Stories

TI can fully trust the surveillance system. With this system, I am able to check every corner of the store from my iPhone. In addition, I can talk to my staffs by the built-in speaker anytime, and no need to make phone calls anymore. The most remarkable thing is that Push Video just helped me catch a thief, who broke into the shop at 4:00 am!

~ Owner of Ikari Coffee shop

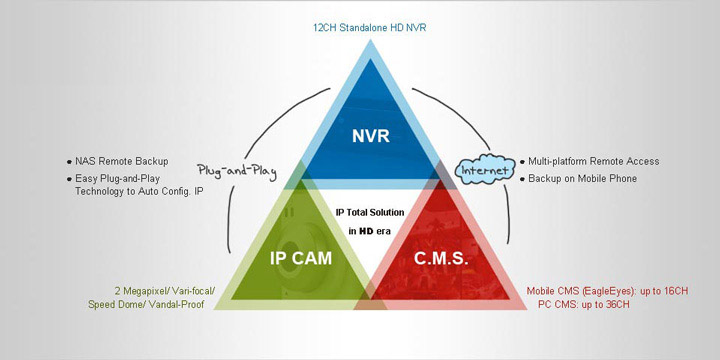

HDTV Solution

Superior performance over traditional CCTV solutions

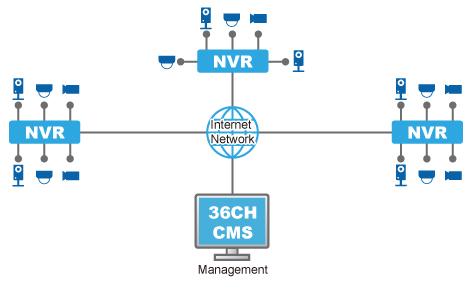

AVTECH HDTV solution is consisted of NVR + HD IP camera + 36CH C.M.S. to offer easy configuration, stable operation, high quality video, huge recording storage, and quick video playback. You may use this 36CH C.M.S. software as a management center for remote live viewing and video playback. Video recording is, otherwise, taking place at the NVR site. Recording at the NVR site, but not at the computer (C.M.S.) site, could keep the video clips away from the potential risk of computer viruses, and ensure the clips won't get lost because of the software or hardware instability of your computer. To see event recordings in HD or megapixel image quality remotely by using this software, the selected file will be downloaded first with the minimum bandwidth to the computer with this software installed, and then played for your checking. This makes digital zoom for minor details also possible.
